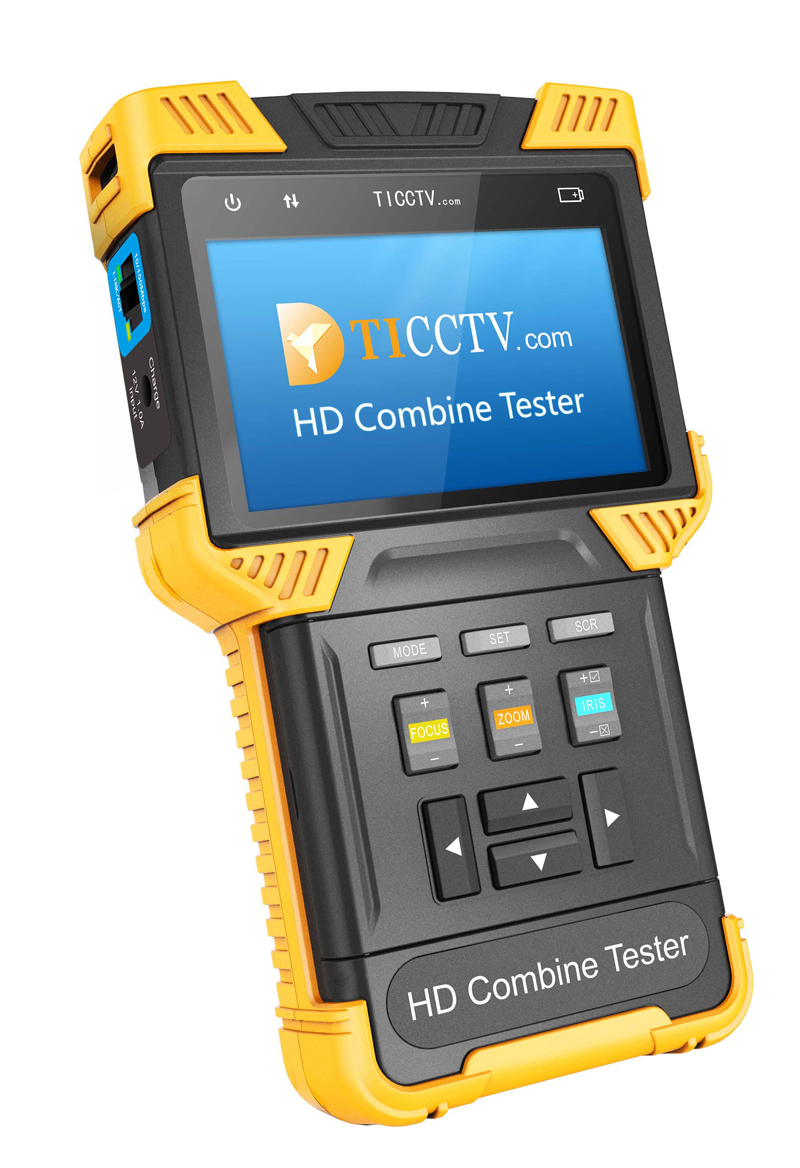

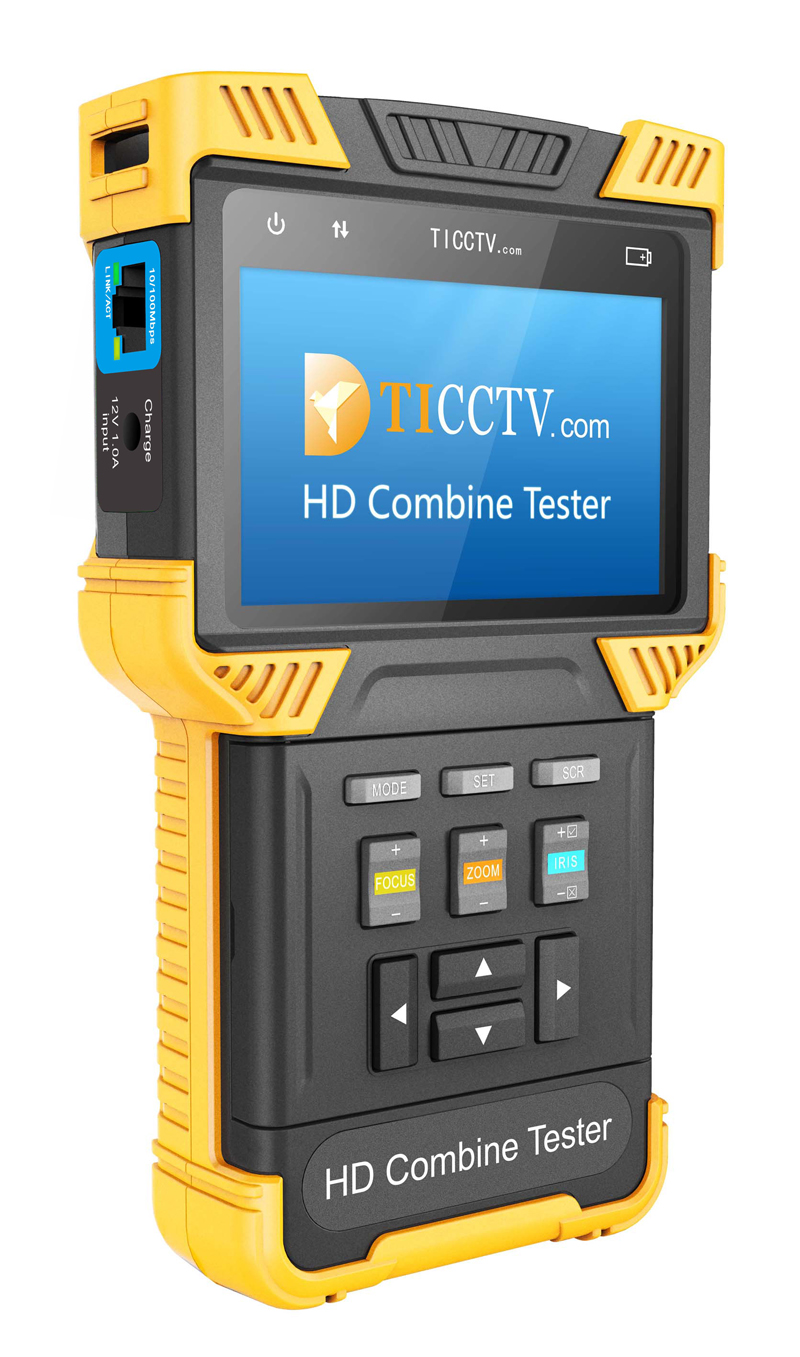

Ticctv DT-T60 camera tester

DT-T60

Series:T6-Series

DT-T60 support Analog SD,HD IPC,Basic on ONVIF highly compatible,Ergonomic design,Operate with single hand,Real time operation prompt
describe
parameter

1.General description

2. Support Analog SD, HD IPC

3. Step by step IPC test, quickly locate failure

4. ONVIF highly compatible

5. Ergonomic design, operate with single hand.

6. Real time operation prompt

7.12V/1A power output

8. Dual 100M network portcapable of detecting packet lost, monitoring network flow.

9. 4.0 inch all viewing angle display,800X480 resolution, 16.7M color。

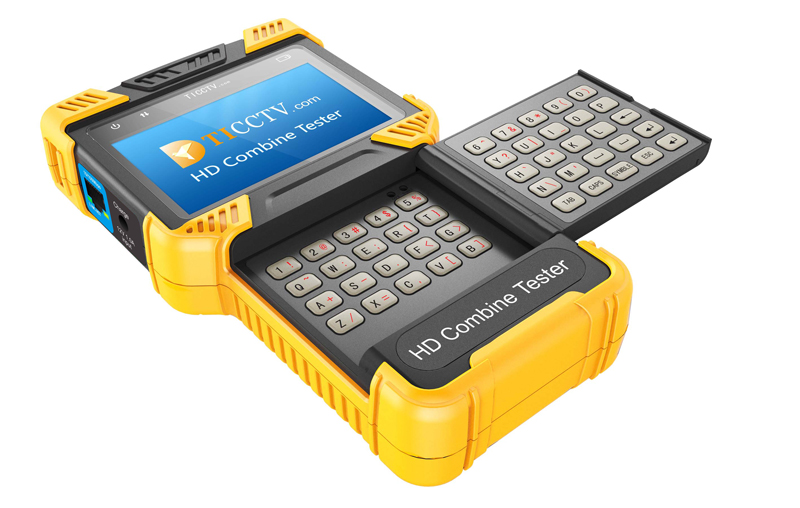

10. Swing keyboard input, QWERTY.

11.Changeable Li-polymer battery, battery working time 5 hours

12. With rubber protection layer

13.Dual LED torch

14. Software upgrade online

Model DT-T60
interface
Network interfaceDual 10/100M RJ45,support switch mode

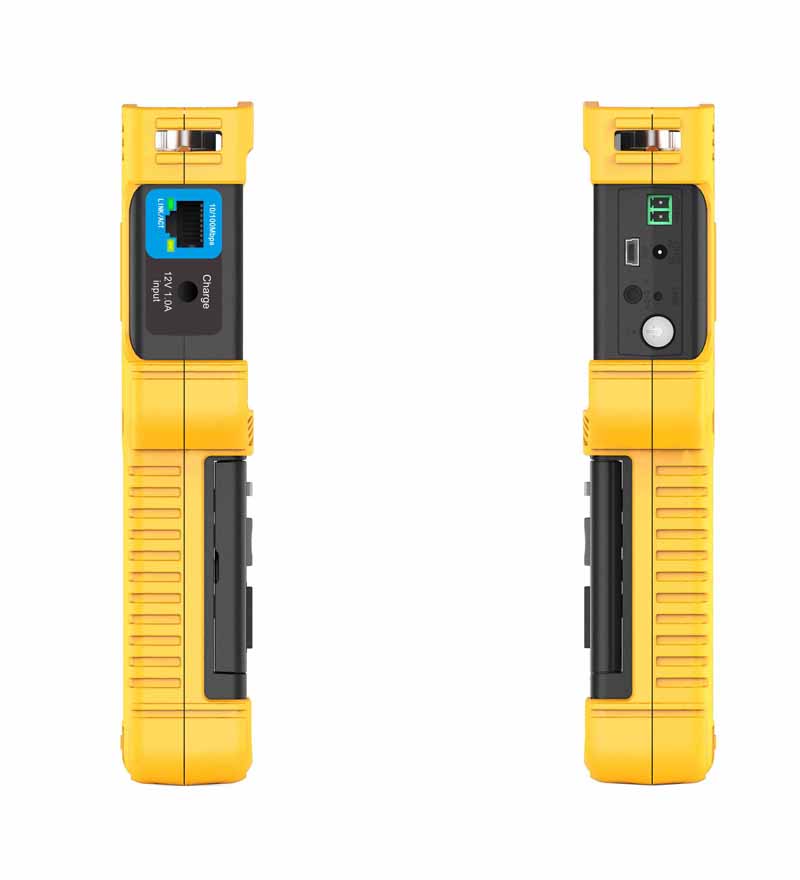

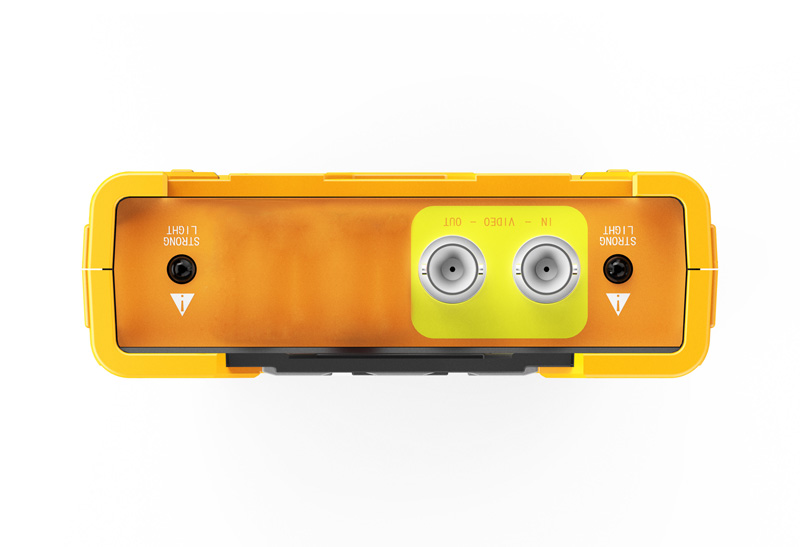

Function interfaceDual BNC connector(Video input/output),RS485comm,audio input,USB, reset button
IPC test
protocolONVIF 2.4.1, RTSP, RTP
Ethernet test10/100MLink test;link speed test;Ethernet loop detect;Ethernet flow monitor;Link quality indicator;
IP SettingManual IP/ DHCP client/ DHCP Server/Multiple DHCP detect/auto DHCP status switching
IPC TestDiscover, inter-subnet discover,camera list, camera snapshot for fast camera indication, real time video, camera network setting, PTZ test, audio test, full screen display of video, digital zoom of video( 8step), save snapshot, record video(original stream), UDP/TCP switching, packet lost indicator, camera profile setting.
Hikvision camera activateAutomatic detect.
Analog SD and HD test
SD standardNTSC, PAL
HD Signal×
Video resolutionD1
Signal level1Vpp
Camera testReal time video, PTZ control, audio test, full screen preview, digital zoom of video(8 step), save snapshot, record video(h.264), video resolution and frame rate indicator.
HD OSD×
HD-TVI Audio×
AHD Audio×
Coaxial control×
Video system auto detect×
PTZ controller
Communication protocolHikvision、Pelco-D/P、Samsung、Panasonic、Lilin、Yaan...more than 30 protocols
Baud rate150, 300, 600, 1200, 2400, 4800, 9600, 19200bps
Other test
TDR Test×
POE Test×
Network analysisSniff, list sub-net,ping
Video generatorSend PAL/NTSC of various test pattern to output
Record playbackLocal playback, snapshot and video digital zoom, video frame by frame play support
device
Display4.0inch TFT 800*RGB*480(WVGA) resolution,16.7M color,back light level adjustable
Internal storage8GB flash
LED torchTwo 35lm LED, can turn on individually when device is off.
OperationPower button, main control keypad of 12 keys, swing QWERTY keyboard of 45 keys.
LanguageChinese,English,French,Spanish,Germany,Turkish,Russian
Keypad toneOn/Off
Software upgradeOnline upgrade
power
Power input
POE injector
batteryDedicate li-polymer battery, user replaceable, capacity 11Wh
Power output12V/1Aoutput
Battery work timeCharge 3~4 hours,working time 5 hours
other
Working temperature-10℃~+55℃
Working humidity30%~90%
Device Dimension190x113x37mm
Weight0.5kg(device with battery) / 1.6kg(gross)
