Products>T6-Series>DT-T62-CVI

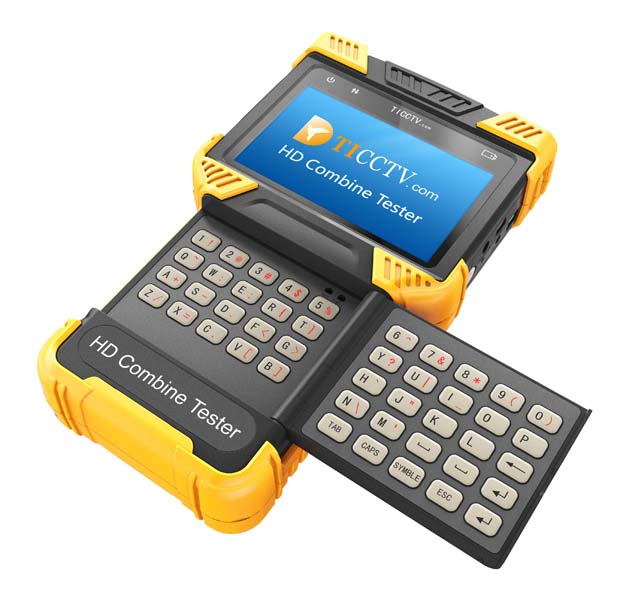

HD Combine Tester(DT-T62-CVI)

DT-T62-CVI

Series:T6-Series

This device is designed for video surveillance installation and maintenance. It can be applied to analog SD video, analog HD video, HD IP CCTV systems, RS485 PTZ control testing, IP camera testing, et
describe
parameter

This device is designed for video surveillance installation and maintenance. It can beapplied to analog SD

 video, analog HD video, HD IP CCTV systems, RS485 PTZ control testing, IP camera testing, Ethernet te-

sting, TDR cable testing*, video screen shots, video recording, playback, and other functions, and combin-

ed with analog camera testing. This device is powerful, easy to carry, very suitable for video security engin-

eering installation and the maintenance of front-end camera equipment.It greatly improves engineering and

installation efficiency,reducing the cost of main-tenance.




Product Highlights

1.Support for traditional analog SD video systems, analog HD video systems, and IP HD systems in one device

2.Step-by-step testing guide allows you to locate faults quickly

3.Highly compatible with ONVIF protocols

4.Ergonomic, portable design and single-handed operation

5.On-screen operation tips

6.POE power supply, PD power accept, and 12V/2A power output

7.Dual 1000M network ports, supports packet loss detection, data flow monitor, etc.

8.4.0 inch IPS Display with 800*480 resolution and 16.7M Colors

9.Flip keyboard input

10.Replaceable lithium-ion polymer battery, battery life of 10 hours

11.Rubber protection layer

12.Dual LED torch light



















Model DT-T62-CVI
interface
Network interfaceDual 10/100/1000M RJ45úČsupport switch mode
Function interfaceDual BNC connectorúĘVideo input/outputúęúČRS485commúČaudio inputúČUSB, reset button
IPC test
protocolONVIF 2.4.1, RTSP, RTP
Ethernet test10/100/1000MLink testú╗link speed testú╗Ethernet loop detectú╗Ethernet flow monitorú╗Link quality indicatorú╗
IP SettingManual IP/ DHCP client/ DHCP Server/Multiple DHCP detect/auto DHCP status switching
IPC TestDiscover, inter-subnet discover,camera list, camera snapshot for fast camera indication, real time video, camera network setting, PTZ test, audio test, full screen display of video, digital zoom of video( 8step), save snapshot, record video(original stream), UDP/TCP switching, packet lost indicator, camera profile setting.
Hikvision camera activateAutomatic detect.
Analog SD and HD test
SD standardNTSC, PAL
HD SignalHD-CVI
Video resolutionD1, 720P, 1080P
Signal level1Vpp
Camera testReal time video, PTZ control, audio test, full screen preview, digital zoom of video(8 step), save snapshot, record video(h.264), video resolution and frame rate indicator.
HD OSDCamera settingúĘOSDúę
HD-TVI Audioí┴
AHD Audioí┴
Coaxial controlDahua coaxial
Video system auto detectí┴
PTZ controller
Communication protocolDahua coaxialíóHikvisioníóPelco-D/PíóSamsungíóPanasonicíóLiliníóYaan...more than 30 protocols
Baud rate150, 300, 600, 1200, 2400, 4800, 9600, 19200bps
Other test
TDR Test0~150m RJ45 cable testúČopen/short/broken wireúČresolution 1m
POE TestPD Test / PSE Test
Network analysisSniff, list sub-net,ping
Video generatorSend PAL/NTSC of various test pattern to output
Record playbackLocal playback, snapshot and video digital zoom, video frame by frame play support
device
Display4.0inch TFT 800*RGB*480(WVGA) resolutionúČ16.7M colorúČback light level adjustable
Internal storage8GB flash
LED torchTwo 35lm LED, can turn on individually when device is off.
OperationPower button, main control keypad of 12 keys, swing QWERTY keyboard of 45 keys.
LanguageChinese,English,French,Spanish,Germany,Turkish,Russian
Keypad toneOn/Off
Software upgradeOnline upgrade
power
Power inputPOE switch or POE injector
POE injectorInput AC100~230V 50~60HzúČoutput 48V/15W
batteryDedicate li-polymer battery, user replaceable, capacity 22.2Wh
Power outputPOE (802.3af, 802.3at) / 12V/2Aoutput
Battery work timeCharge 3~4 hoursúČworking time 10 hours
other
Working temperature-10íŠ~+55íŠ
Working humidity30%~90%
Device Dimension190x113x37mm
Weight0.5kg(device with battery) / 1.6kg(gross)
