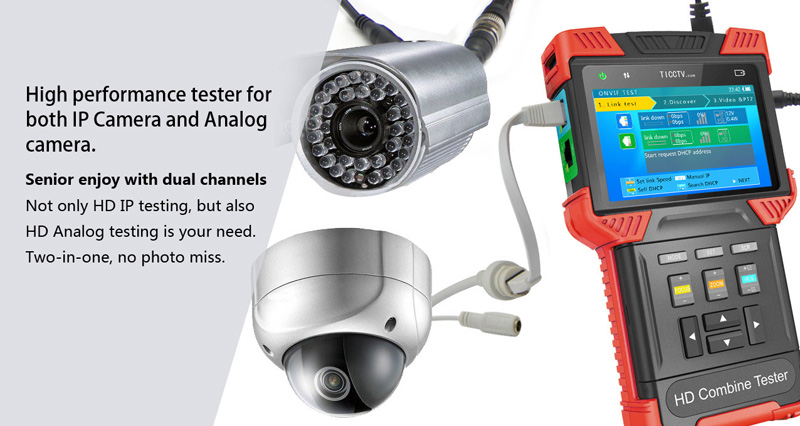

Camera Tester DT-T62-AHD+TVI

DT-T62-AHD+TVI

Series:T6-Series

Support Analog SD, HD-TVI,AHD,HD IPC,POE power output and power accept,12V/2A power output,Dual 1000M network port£¬capable of detecting packet lost, monitoring network flow
describe
parameter


1.General description


¡ïSupport Analog SD, HD-TVI,AHD, HD IPC

¡ïStep by step IPC test, quickly locate failure
¡ïONVIF highly compatible
¡ïErgonomic design, operate with single hand.
¡ïReal time operation prompt

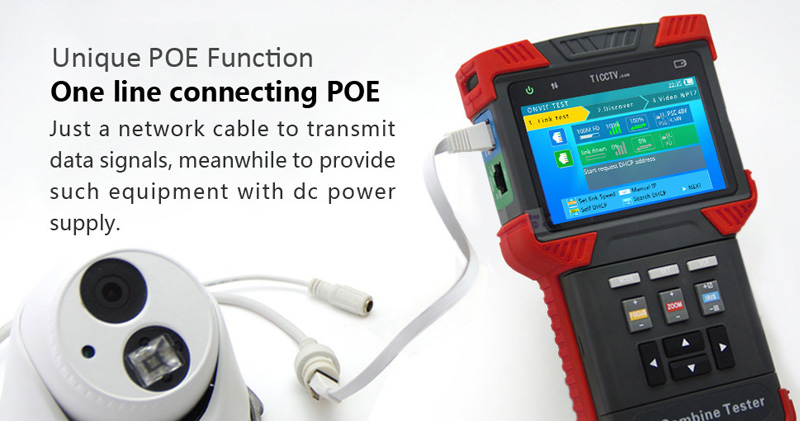

¡ïPOE power output and power accept,12V/2A power output¡£
¡ïDual 1000M network port£¬capable of detecting packet lost, monitoring network flow.¡£
¡ï4.0 inch all viewing angle display£¬800X480 resolution, 16.7M color¡£
¡ïSwing keyboard input, QWERTY.
¡ïChangeable Li-polymer battery, battery working time 10 hours

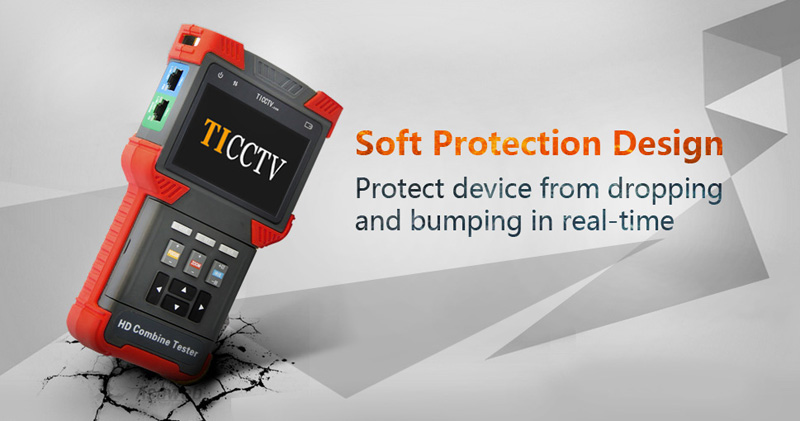

¡ïWith rubber protection layer

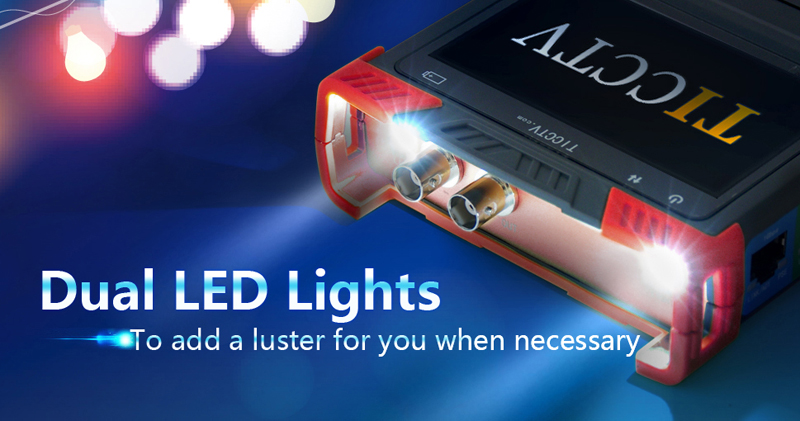

¡ïDual LED torch

¡ïSoftware upgrade online


2.Product structure




Model DT-T62-AHD+TVI
interface
Network interfaceDual 10/100/1000M RJ45£¬support switch mode
Function interfaceDual BNC connector£¨Video input/output£©£¬RS485comm£¬audio input£¬USB, reset button
IPC test
protocolONVIF 2.4.1, RTSP, RTP
Ethernet test10/100/1000MLink test£»link speed test£»Ethernet loop detect£»Ethernet flow monitor£»Link quality indicator£»
IP SettingManual IP/ DHCP client/ DHCP Server/Multiple DHCP detect/auto DHCP status switching

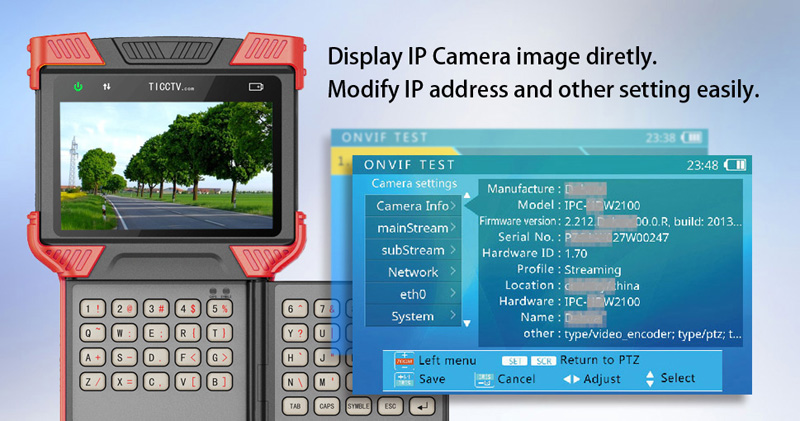

IPC TestDiscover, inter-subnet discover,camera list, camera snapshot for fast camera indication, real time video, camera network setting, PTZ test, audio test, full screen display of video, digital zoom of video( 8step), save snapshot, record video(original stream), UDP/TCP switching, packet lost indicator, camera profile setting.
Hikvision camera activateAutomatic detect.
Analog SD and HD test
SD standardNTSC, PAL
HD SignalHD-TVI, AHD
Video resolutionD1, 720P, 1080P
Signal level1Vpp
Camera testReal time video, PTZ control, audio test, full screen preview, digital zoom of video(8 step), save snapshot, record video(h.264), video resolution and frame rate indicator.
HD OSDCamera setting£¨OSD£©
HD-TVI Audiosupported
AHD Audiosupported
Coaxial controlHikvision coaxial¡¢PELCO-C coaxial
Video system auto detectYes
PTZ controller
Communication protocolHikvision coaxial¡¢PELCO-C coaxial¡¢Hikvision¡¢Pelco-D/P¡¢Samsung¡¢Panasonic¡¢Lilin¡¢Yaan...more than 30 protocols
Baud rate150, 300, 600, 1200, 2400, 4800, 9600, 19200bps
Other test

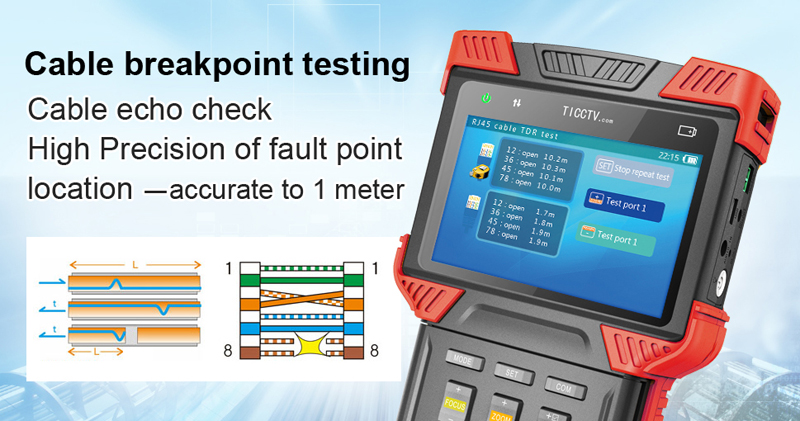

TDR Test0~150m RJ45 cable test£¬open/short/broken wire£¬resolution 1m

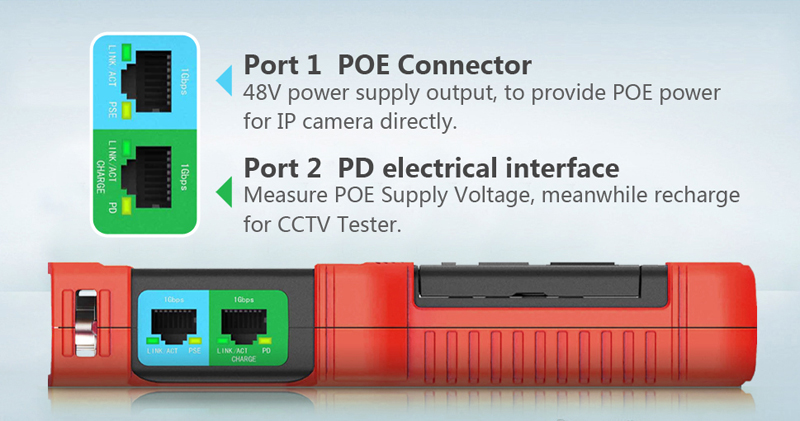

POE TestPD Test / PSE Test
Network analysisSniff, list sub-net,ping
Video generatorSend PAL/NTSC of various test pattern to output
Record playbackLocal playback, snapshot and video digital zoom, video frame by frame play support
device
Display4.0inch TFT 800*RGB*480(WVGA) resolution£¬16.7M color£¬back light level adjustable
Internal storage8GB flash
LED torchTwo 35lm LED, can turn on individually when device is off.
OperationPower button, main control keypad of 12 keys, swing QWERTY keyboard of 45 keys.
LanguageChinese,English,French,Spanish,Germany,Turkish,Russian
Keypad toneOn/Off
Software upgradeOnline upgrade
power
Power inputPOE switch or POE injector
POE injectorInput AC100~230V 50~60Hz£¬output 48V/15W
batteryDedicate li-polymer battery, user replaceable, capacity 22.2Wh
Power outputPOE (802.3af, 802.3at) / 12V/2Aoutput
Battery work timeCharge 3~4 hours£¬working time 10 hours
other
Working temperature-10¡æ~+55¡æ
Working humidity30%~90%
Device Dimension190x113x37mm
Weight0.5kg(device with battery) / 1.6kg(gross)
